Autolämmitys, joka lämmittää auton juuri lähtöaikaan

# Car block heater: helpers and heating time.
# Save as config/packages/car_block_heater.yaml (packages must be enabled in configuration.yaml).
# Replace sensor.outdoor_temperature with your own outdoor temperature sensor.
# For a second car, copy the block and change "car" to e.g. "car_2".

input_datetime:
  car_departure_time:
    name: Car departure time
    has_date: false
    has_time: true
    icon: mdi:clock-outline

input_boolean:
  car_heating_schedule:
    name: Car scheduled heating
    icon: mdi:calendar-clock

# Heating time for each temperature band. Adjust these from the dashboard;
# Home Assistant remembers the values across restarts.
input_number:
  car_heating_minus_20:
    name: Car heating time at −20 °C or colder
    min: 0
    max: 180
    step: 5
    mode: box
    unit_of_measurement: min
  car_heating_minus_10:
    name: Car heating time at −10 to −20 °C
    min: 0
    max: 180
    step: 5
    mode: box
    unit_of_measurement: min
  car_heating_minus_5:
    name: Car heating time at −5 to −10 °C
    min: 0
    max: 180
    step: 5
    mode: box
    unit_of_measurement: min
  car_heating_below_5:
    name: Car heating time below +5 °C
    min: 0
    max: 180
    step: 5
    mode: box
    unit_of_measurement: min

template:
  - sensor:
      # Minutes of heating at the current outdoor temperature, from the times above
      - name: Car heating time
        unique_id: car_heating_time
        unit_of_measurement: min
        icon: mdi:timer-outline
        state: >
          {% set t = states('sensor.outdoor_temperature') | float(99) %}
          {% if t <= -20 %}{{ states('input_number.car_heating_minus_20') | int(0) }}
          {% elif t <= -10 %}{{ states('input_number.car_heating_minus_10') | int(0) }}
          {% elif t <= -5 %}{{ states('input_number.car_heating_minus_5') | int(0) }}
          {% elif t < 5 %}{{ states('input_number.car_heating_below_5') | int(0) }}
          {% else %}0
          {% endif %}

      # When heating starts, for the dashboard
      - name: Car heating starts
        unique_id: car_heating_starts
        icon: mdi:clock-start
        state: >
          {% set h = state_attr('input_datetime.car_departure_time', 'hour') | int(0) %}
          {% set m = state_attr('input_datetime.car_departure_time', 'minute') | int(0) %}
          {% set dep = h * 60 + m %}
          {% set dur = states('sensor.car_heating_time') | int(0) %}
          {% if dur == 0 %}none{% else %}
          {% set start = (dep - dur) % 1440 %}
          {{ '%02d:%02d' | format(start // 60, start % 60) }}
          {% endif %}

blueprint:
  name: Car block heater by departure time
  author: Automate the North
  description: >
    Switches a car engine block heater on so the car is warm at your departure time,
    and off again shortly after you leave.


    **How it works**

    - Heating starts *heating time* minutes before the departure time. The heating
    time comes from a sensor you choose (minutes), so you decide how long to heat
    at each outdoor temperature. A heating time of 0 means no heating that day.

    - The heater switches off a few minutes after departure.

    - If you switch the heater on by hand, it switches itself off after the heating
    time plus the after-departure buffer, so a forgotten heater never runs all day.

    - If you change the departure time so heating should already be running, it
    starts immediately.

    - When the schedule toggle is off, this automation never touches the heater.
  domain: automation
  input:
    heater:
      name: Heater switch
      description: The smart plug or relay that powers the block heater.
      selector:
        entity:
          filter:
            - domain: switch
    departure_time:
      name: Departure time
      description: An input_datetime helper with time only.
      selector:
        entity:
          filter:
            - domain: input_datetime
    schedule_enabled:
      name: Scheduled heating toggle
      description: An input_boolean that turns scheduled heating on or off.
      selector:
        entity:
          filter:
            - domain: input_boolean
    heating_time:
      name: Heating time sensor
      description: A sensor whose state is the heating time in minutes, usually a template based on the outdoor temperature.
      selector:
        entity:
          filter:
            - domain: sensor
    after_departure:
      name: Keep heating after departure
      description: Minutes the heater stays on after the departure time. Also the run time of a manual start on a warm day.
      default: 15
      selector:
        number:
          min: 0
          max: 60
          unit_of_measurement: min

mode: queued
max: 10

trigger_variables:
  heater: !input heater
  departure: !input departure_time
  heating_time: !input heating_time
  buffer: !input after_departure

triggers:
  # Departure minus heating time
  - trigger: template
    id: start
    value_template: >
      {% set dep = (state_attr(departure, 'hour') | int(0)) * 60 + (state_attr(departure, 'minute') | int(0)) %}
      {% set dur = states(heating_time) | int(0) %}
      {{ dur > 0 and (now().hour * 60 + now().minute) == (dep - dur) % 1440 }}
  # Departure plus buffer
  - trigger: template
    id: end
    value_template: >
      {% set dep = (state_attr(departure, 'hour') | int(0)) * 60 + (state_attr(departure, 'minute') | int(0)) %}
      {{ (now().hour * 60 + now().minute) == (dep + buffer | int(0)) % 1440 }}
  # Any run (manual or scheduled) ends after heating time + buffer at the latest
  - trigger: state
    id: timeout
    entity_id: !input heater
    to: 'on'
    for:
      minutes: '{{ [states(heating_time) | int(0), 0] | max + buffer | int(0) }}'
  # Settings changed: start right away if we're already inside the heating window
  - trigger: state
    id: settings
    entity_id:
      - !input departure_time
      - !input schedule_enabled
  # Heating time grew so that the window now includes the current minute
  - trigger: state
    id: heating_time
    entity_id: !input heating_time
  # After a restart: resume a heating window that started while HA was down
  - trigger: homeassistant
    id: ha_start
    event: start
  # Safety net for runs whose timer was lost in a restart
  - trigger: time_pattern
    id: watchdog
    minutes: /5

conditions:
  - condition: state
    entity_id: !input schedule_enabled
    state: 'on'

variables:
  now_min: '{{ now().hour * 60 + now().minute }}'
  dep_min: "{{ (state_attr(departure, 'hour') | int(0)) * 60 + (state_attr(departure, 'minute') | int(0)) }}"
  end_min: '{{ (dep_min + buffer | int(0)) % 1440 }}'
  # Is now_min inside [departure - heating time, departure + buffer)? Wraps past midnight.
  in_window: >-
    {%- set dur = states(heating_time) | int(0) -%}
    {%- set start = (dep_min - dur) % 1440 -%}
    {{ dur > 0 and ((start <= end_min and start <= now_min and now_min < end_min)
       or (start > end_min and (now_min >= start or now_min < end_min))) }}
  # Same test with the heating time before this change (only for heating_time triggers)
  was_in_window: >-
    {%- set dur = trigger.from_state.state | int(0) if trigger.id == 'heating_time' else 0 -%}
    {%- set start = (dep_min - dur) % 1440 -%}
    {{ dur > 0 and ((start <= end_min and start <= now_min and now_min < end_min)
       or (start > end_min and (now_min >= start or now_min < end_min))) }}

actions:
  - choose:
      - conditions:
          - condition: trigger
            id: start
          - condition: template
            value_template: "{{ is_state(heater, 'off') }}"
        sequence:
          - action: switch.turn_on
            target:
              entity_id: !input heater

      - conditions:
          - condition: trigger
            id: [settings, heating_time, ha_start]
          - condition: template
            value_template: "{{ in_window | bool and not was_in_window | bool and is_state(heater, 'off') }}"
        sequence:
          - action: switch.turn_on
            target:
              entity_id: !input heater

      - conditions:
          - condition: trigger
            id: [end, timeout]
          - condition: template
            value_template: "{{ is_state(heater, 'on') }}"
        sequence:
          - action: switch.turn_off
            target:
              entity_id: !input heater

      # Heater left on outside the heating window for longer than a run may last
      - conditions:
          - condition: trigger
            id: [watchdog, ha_start]
          - condition: template
            value_template: >-
              {%- set on_min = (now() - states[heater].last_changed).total_seconds() / 60 -%}
              {%- set limit = [states(heating_time) | int(0), 0] | max + buffer | int(0) -%}
              {{ is_state(heater, 'on') and not in_window | bool and on_min >= limit }}
        sequence:
          - action: switch.turn_off
            target:
              entity_id: !input heater

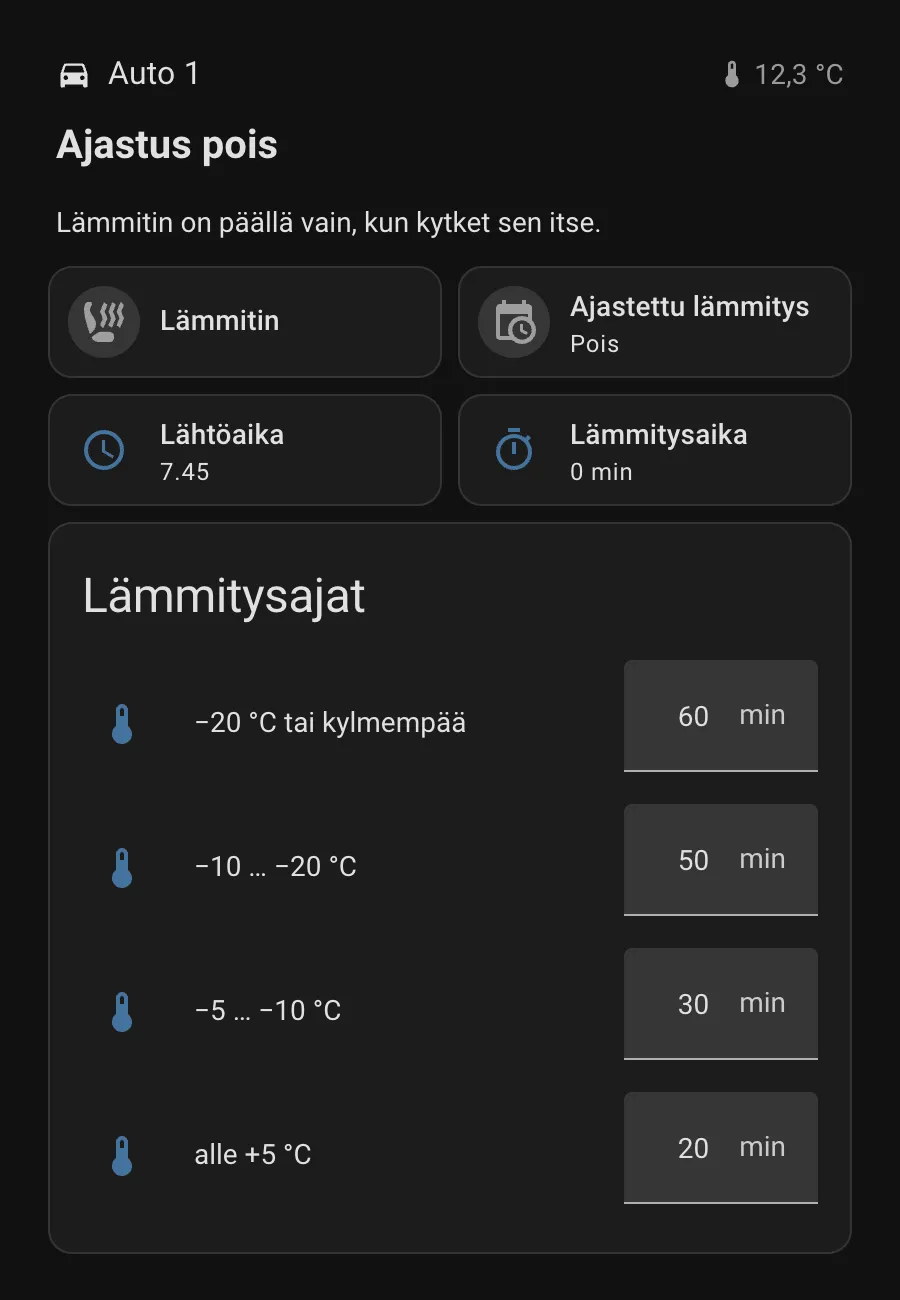

# Yhden auton dashboard-osio. Sections-näkymässä: lisää osio → ⋮ → Muokkaa YAML:na ja liitä tämä.
type: 'grid'
cards:
  - type: 'heading'
    heading: 'Auto'
    heading_style: 'title'
    icon: 'mdi:car'
    badges:
      - type: 'entity'
        entity: 'sensor.outdoor_temperature'
        name: 'Ulkona'
        show_name: false
        show_icon: true
        icon: 'mdi:thermometer'
        show_state: true
  - type: 'markdown'
    text_only: true
    content: |-
      {%- set t = states('sensor.outdoor_temperature') | float(none) -%}
      {%- set tt = (t | round(1) | string) | replace('.', ',') if t is not none else '–' -%}
      {%- set dur = states('sensor.car_heating_time') | int(0) -%}
      {%- set dep = states('input_datetime.car_departure_time')[:5] -%}
      {%- if is_state('switch.car_block_heater','on') and is_state('input_boolean.car_heating_schedule','off') -%}
      ## Lämmitin päällä
      Ajastus on pois, joten lämmitin on päällä, kunnes sammutat sen.
      {%- elif is_state('switch.car_block_heater','on') -%}
      ## Lämmitys päällä
      Valmis lähtöön klo {{ dep }}.
      {%- elif is_state('input_boolean.car_heating_schedule','off') -%}
      ## Ajastus pois
      Lämmitin on päällä vain, kun kytket sen itse.
      {%- elif dur == 0 -%}
      ## Lämmitystä ei tarvita
      Ulkona on {{ tt }} °C. Auto on valmis klo {{ dep }} sellaisenaan.
      {%- else -%}
      ## Lämmitys alkaa klo {{ states('sensor.car_heating_starts') }}
      {{ dur }} minuuttia, kun ulkona on {{ tt }} °C. Lämmin klo {{ dep }}.
      {%- endif -%}
    grid_options:
      columns: 'full'
  - type: 'tile'
    entity: 'switch.car_block_heater'
    name: 'Lämmitin'
    icon: 'mdi:car-seat-heater'
    vertical: false
    grid_options:
      columns: 6
    tap_action:
      action: 'toggle'
    icon_tap_action:
      action: 'toggle'
    hide_state: true
  - type: 'tile'
    entity: 'input_boolean.car_heating_schedule'
    name: 'Ajastettu lämmitys'
    icon: 'mdi:calendar-clock'
    vertical: false
    grid_options:
      columns: 6
    tap_action:
      action: 'toggle'
    icon_tap_action:
      action: 'toggle'
  - type: 'tile'
    entity: 'input_datetime.car_departure_time'
    name: 'Lähtöaika'
    icon: 'mdi:clock-outline'
    vertical: false
    grid_options:
      columns: 6
  - type: 'tile'
    entity: 'sensor.car_heating_time'
    name: 'Lämmitysaika'
    icon: 'mdi:timer-outline'
    vertical: false
    grid_options:
      columns: 6
  - type: 'entities'
    title: 'Lämmitysajat'
    state_color: false
    grid_options:
      columns: 'full'
    entities:
      - entity: 'input_number.car_heating_minus_20'
        name: '−20 °C tai kylmempää'
        icon: 'mdi:thermometer'
      - entity: 'input_number.car_heating_minus_10'
        name: '−10 … −20 °C'
        icon: 'mdi:thermometer'
      - entity: 'input_number.car_heating_minus_5'
        name: '−5 … −10 °C'
        icon: 'mdi:thermometer'
      - entity: 'input_number.car_heating_below_5'
        name: 'alle +5 °C'
        icon: 'mdi:thermometer'
